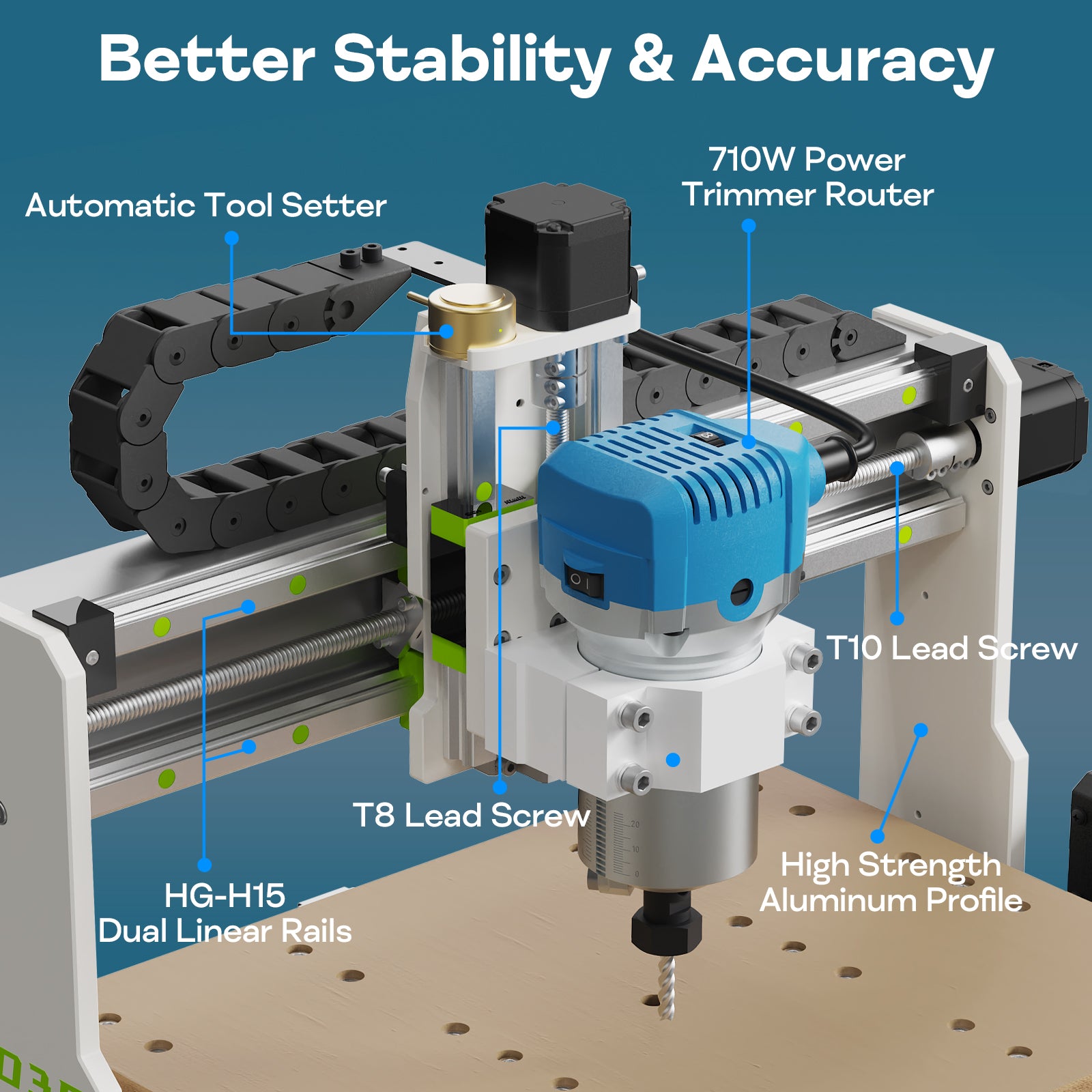

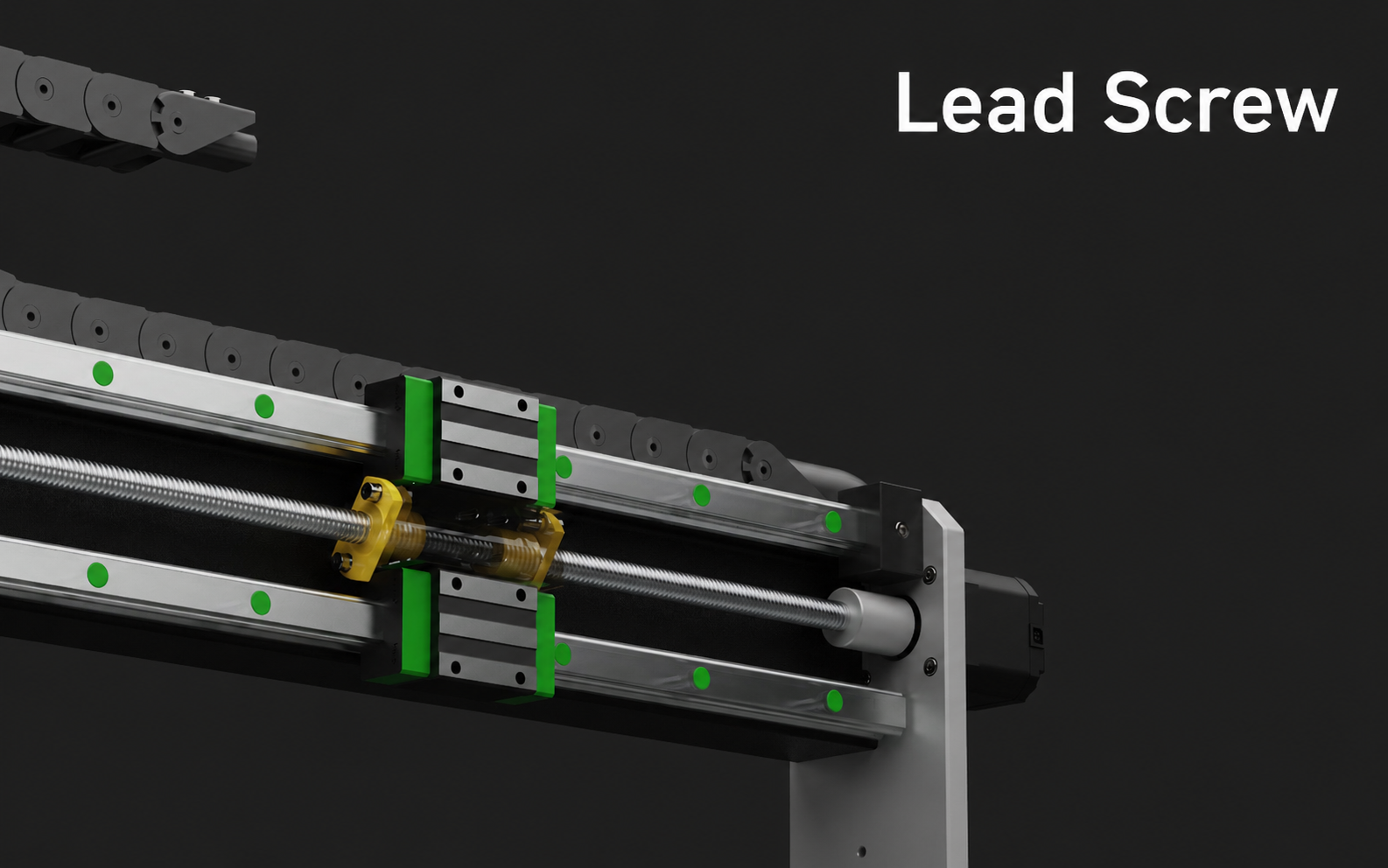

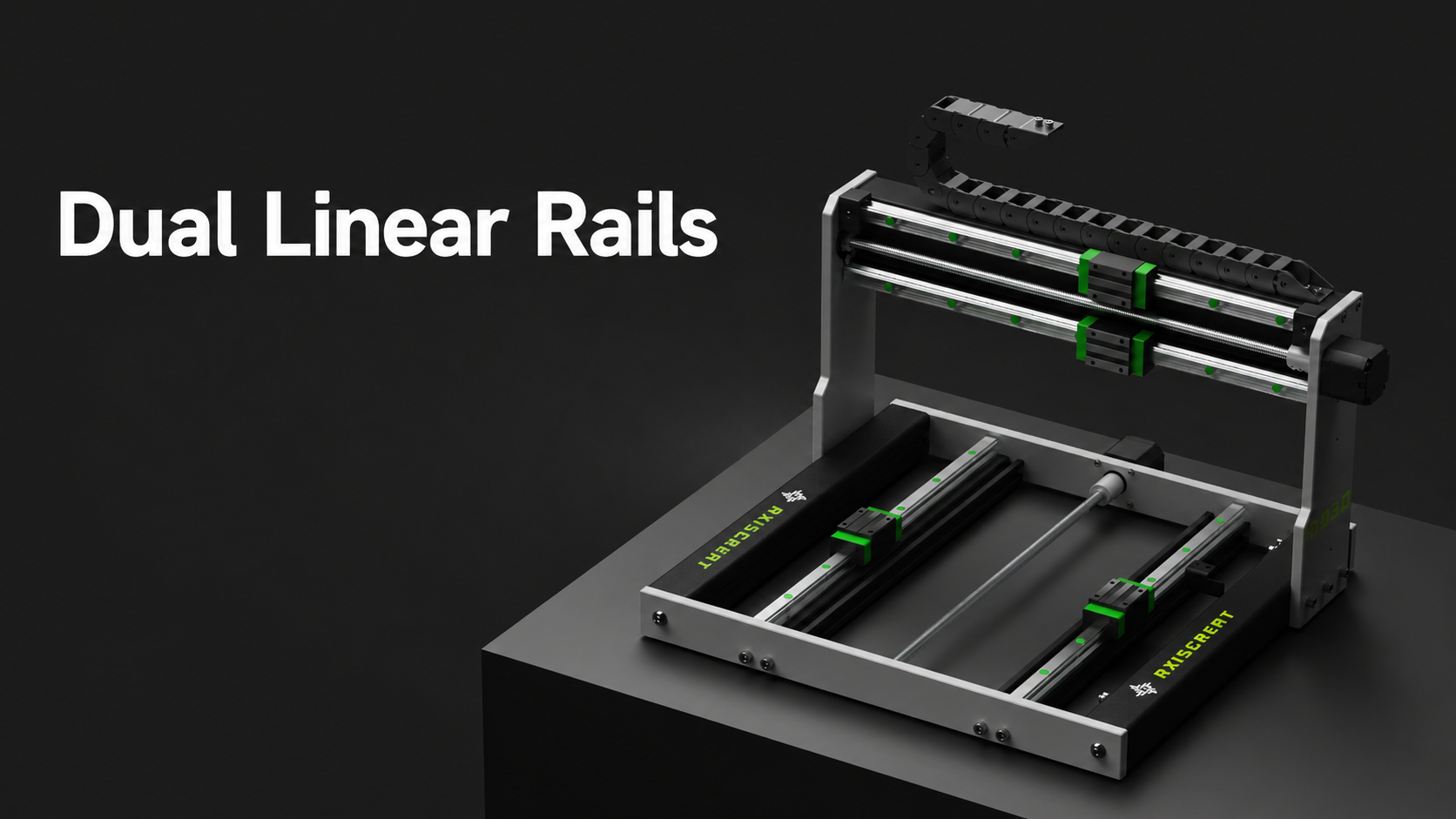

Linear Guides and Leadscrew Drive: The X and Y axes use T10 leadscrews, while the Z axis uses a T8 leadscrew. HGH15 linear guides ensure precise orientation. An automatic tool setting probe is included for high-speed and high-precision requirements

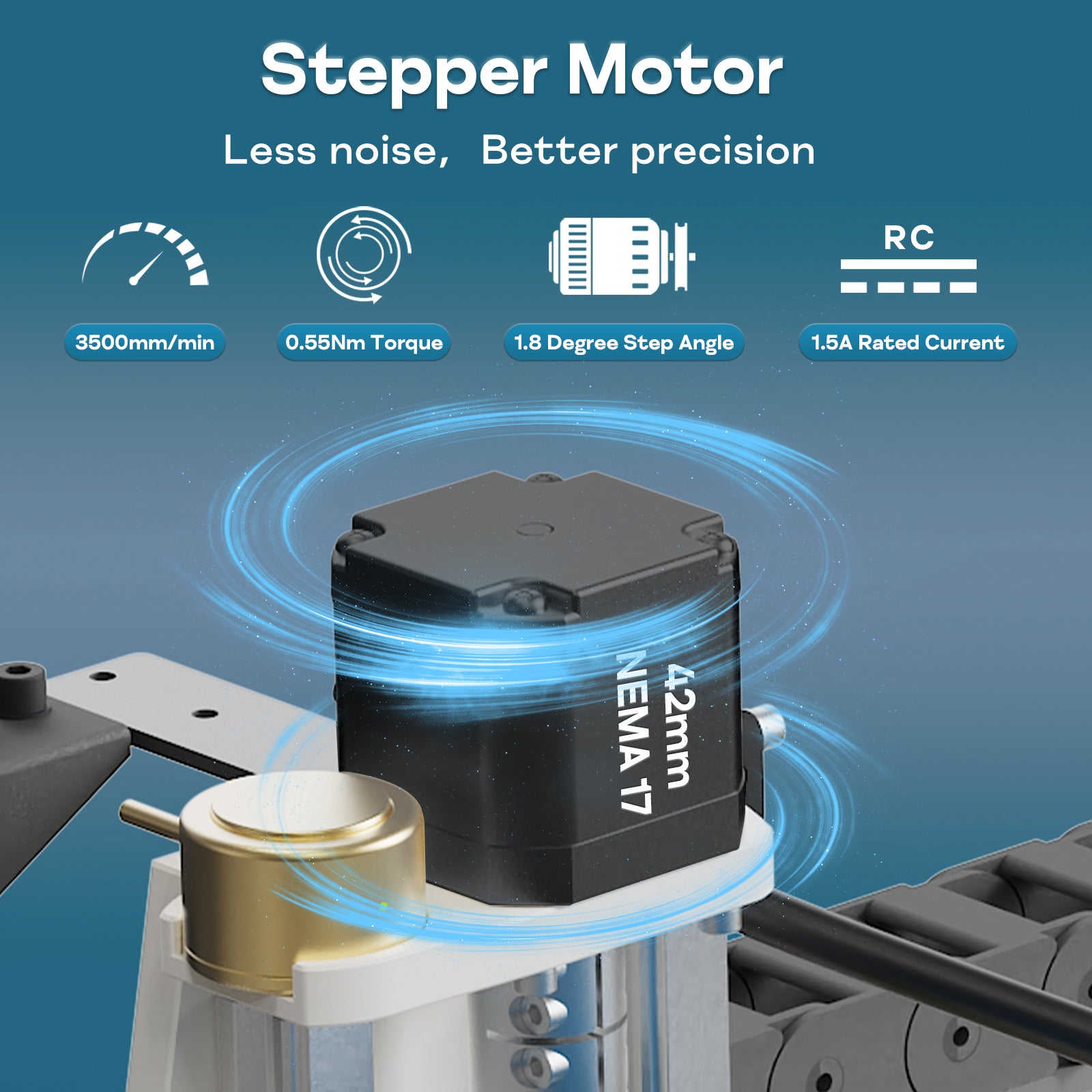

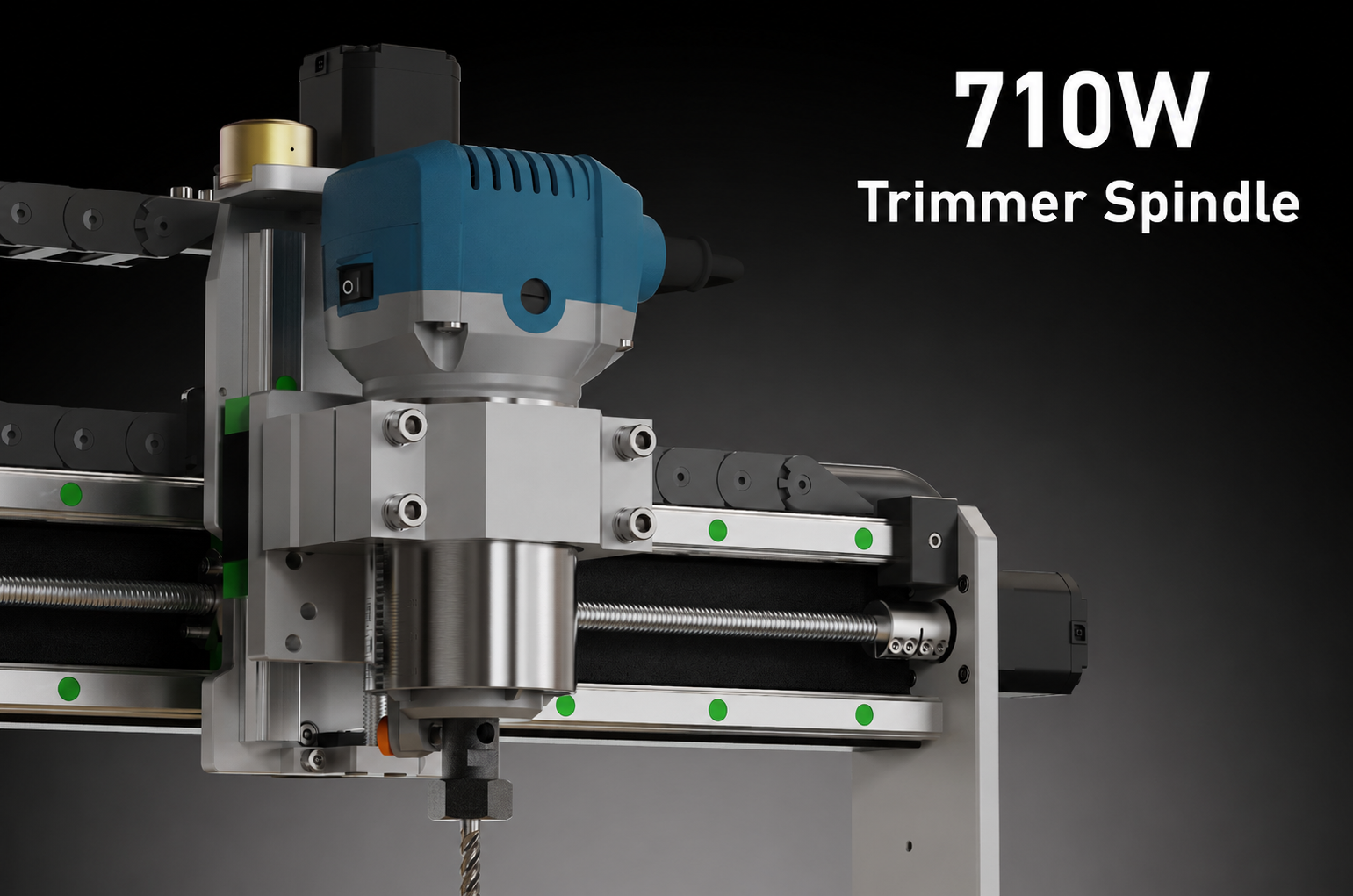

Performance: Equipped with a 710W trimmer router (6000–30,000 RPM) and a 42mm NEMA 17 stepper motor, this machine handles various materials efficiently. Speed adjustments are made via the offline controller

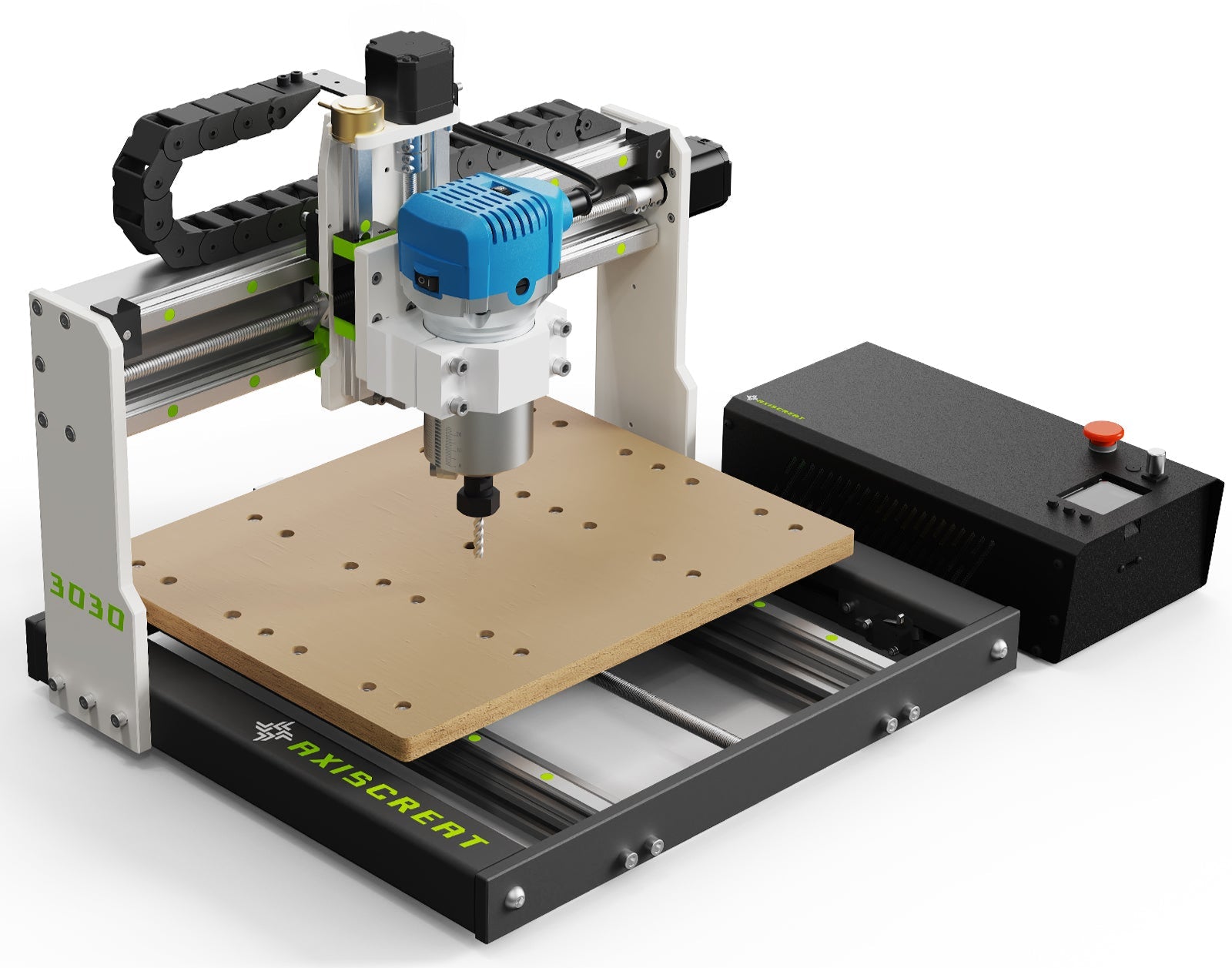

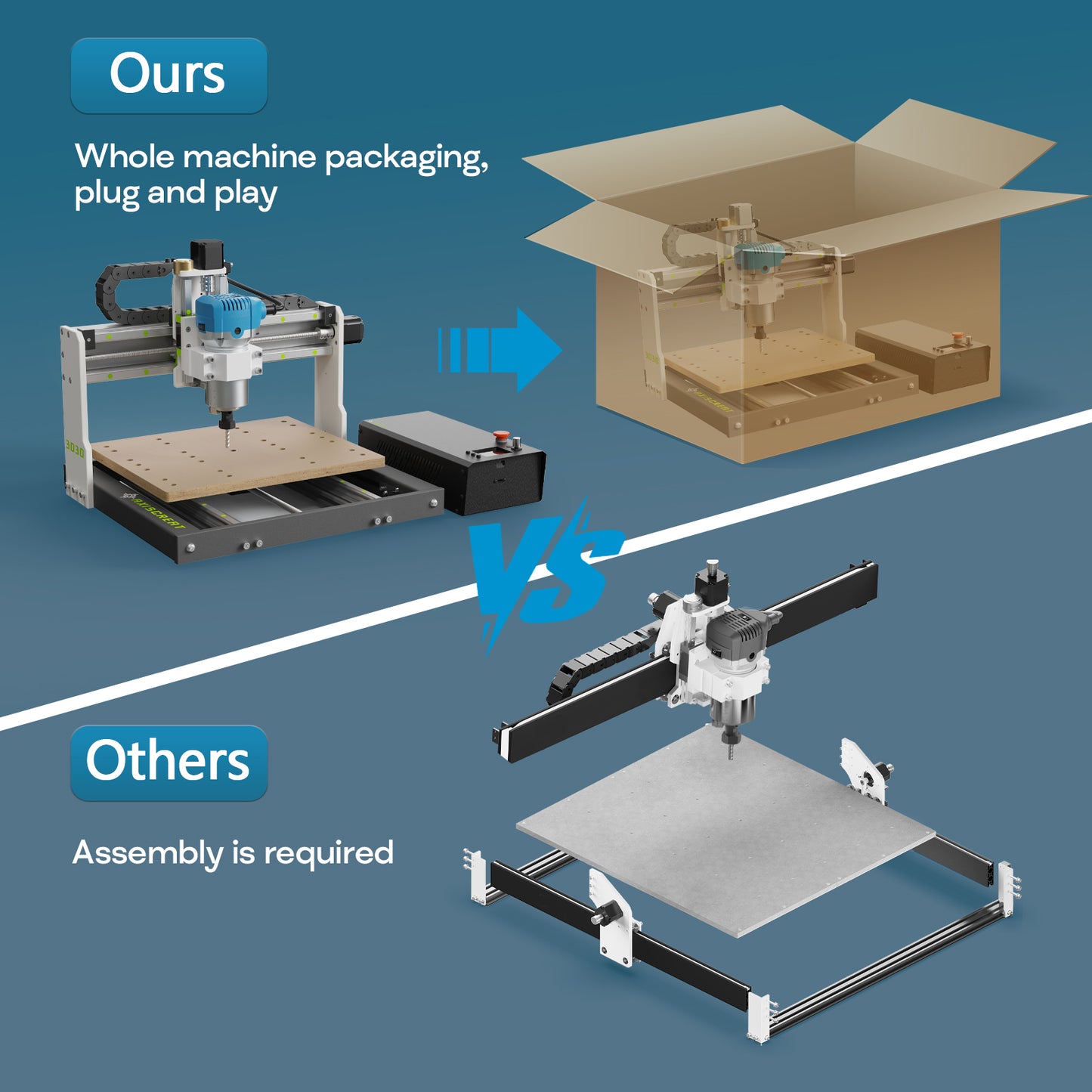

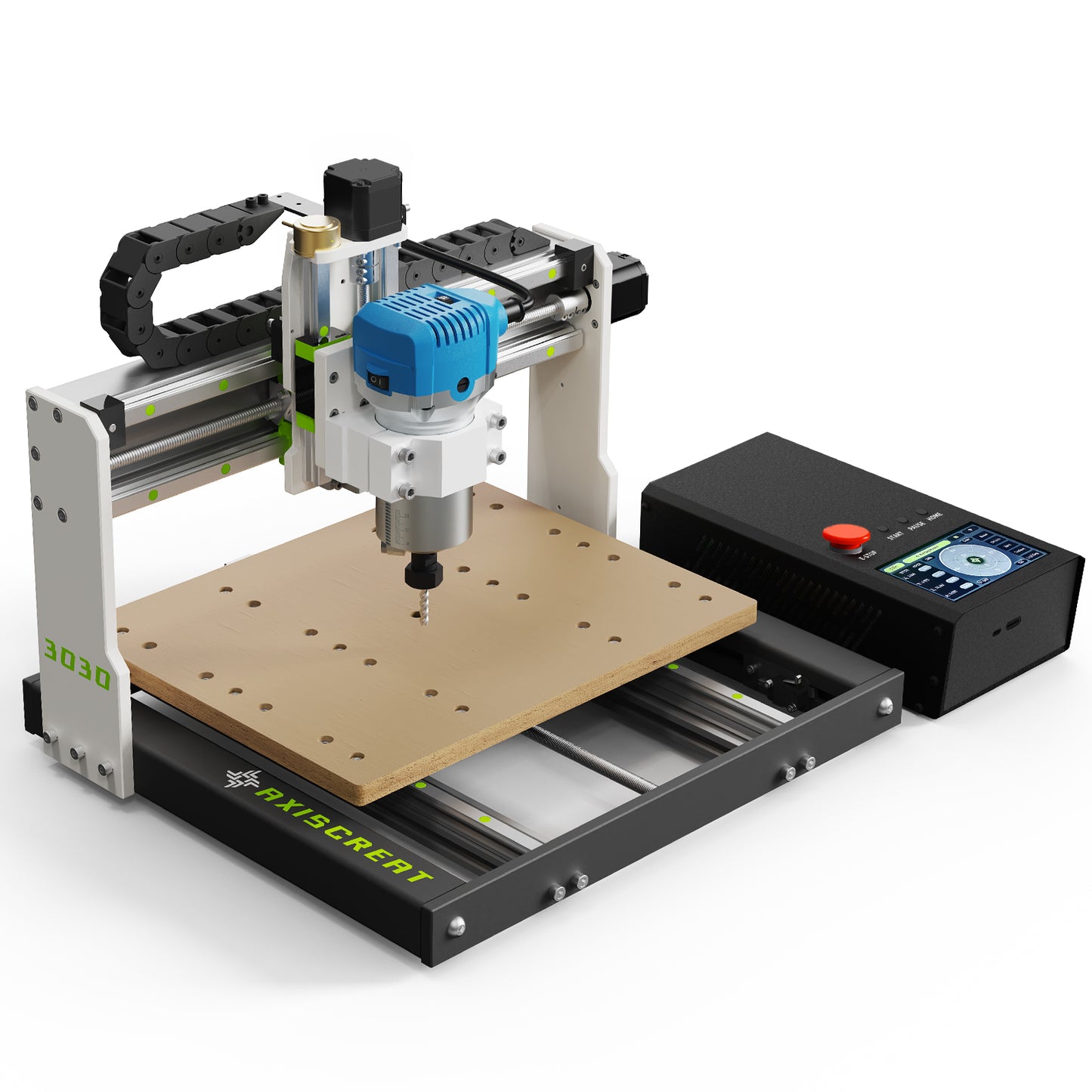

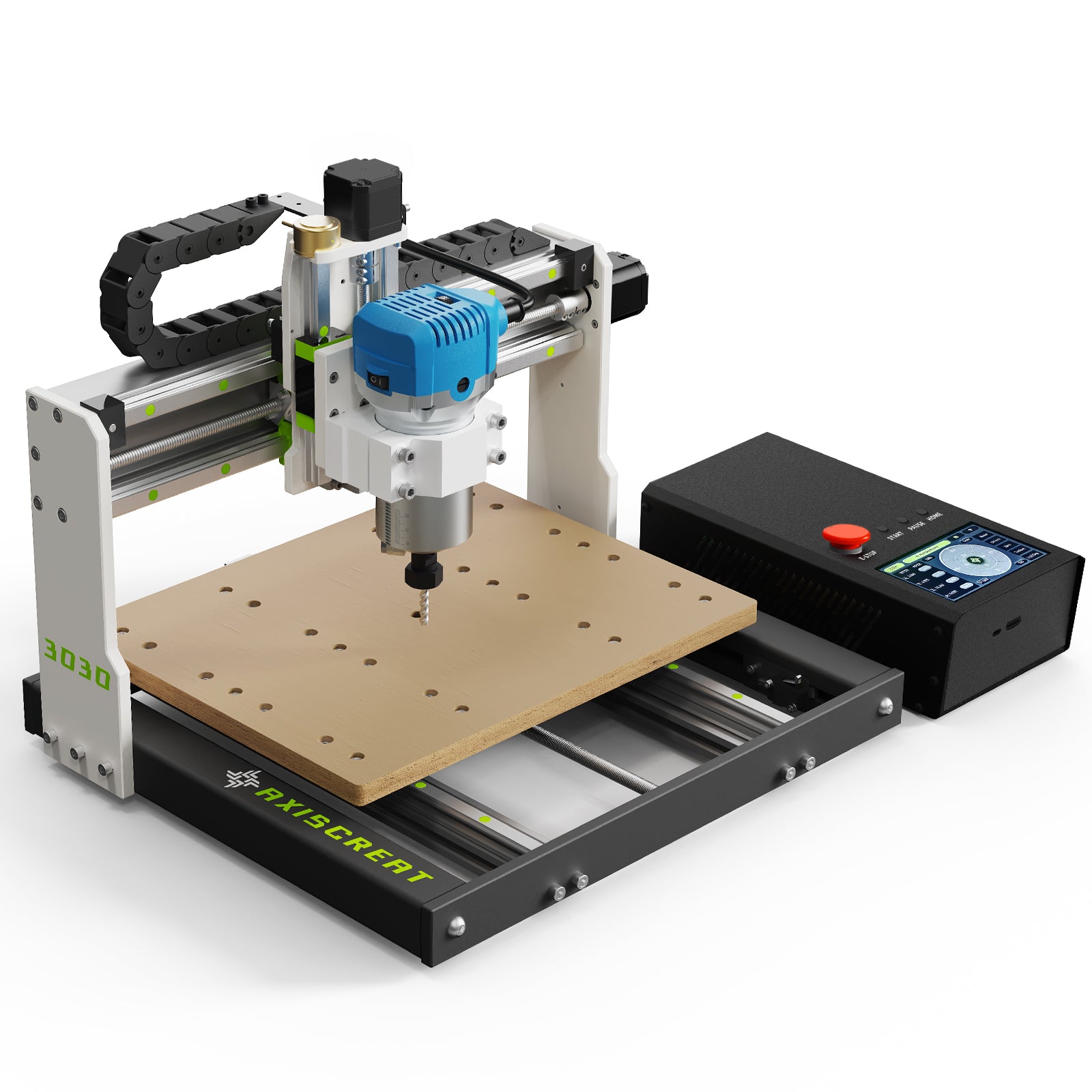

No Assembly Required: The machine is pre-assembled and ready to use out of the box. Simply install the provided software (Candle) and connect the cable harness between the control box and the engraving machine. The 3030 CNC engraving and milling machine is fully prepared for your projects

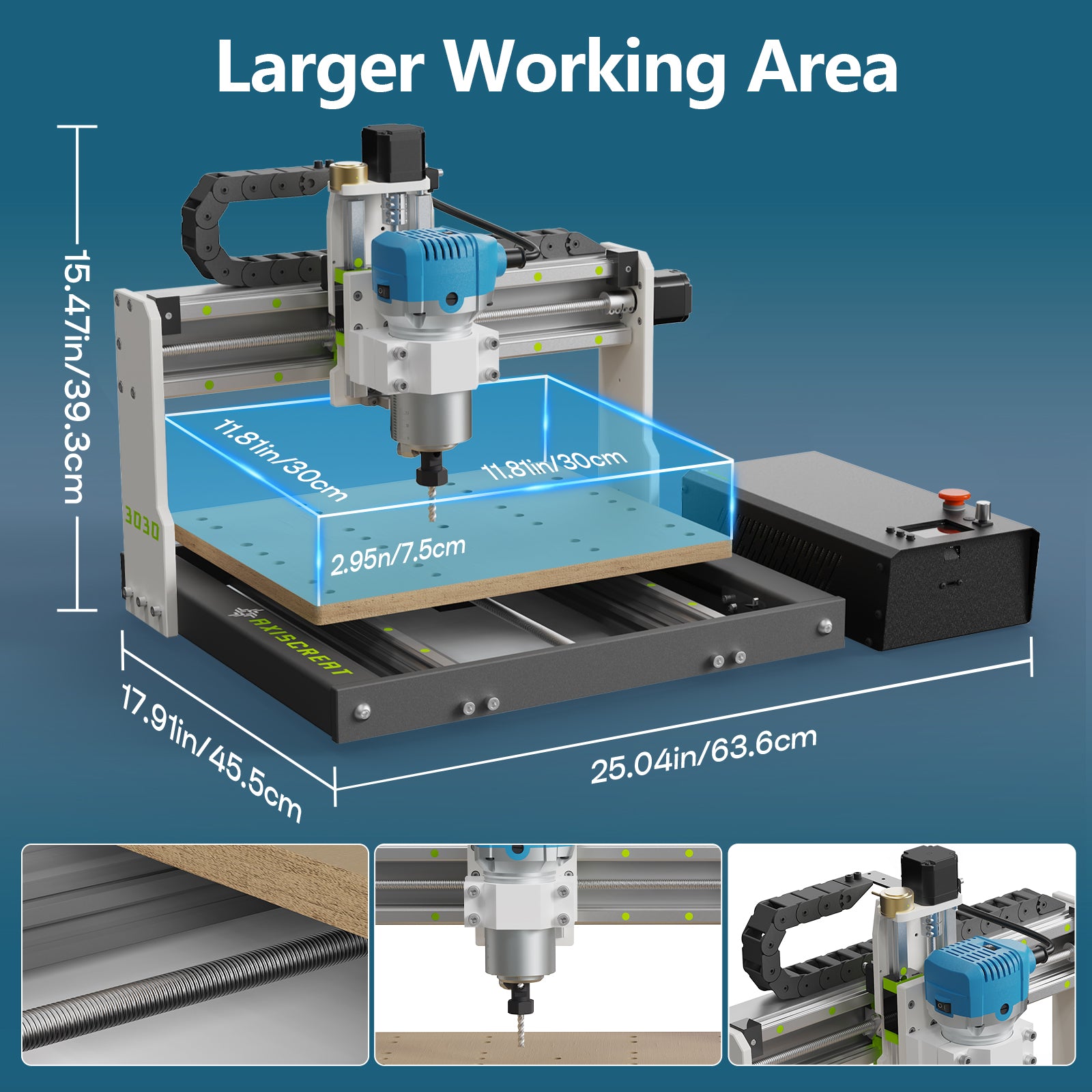

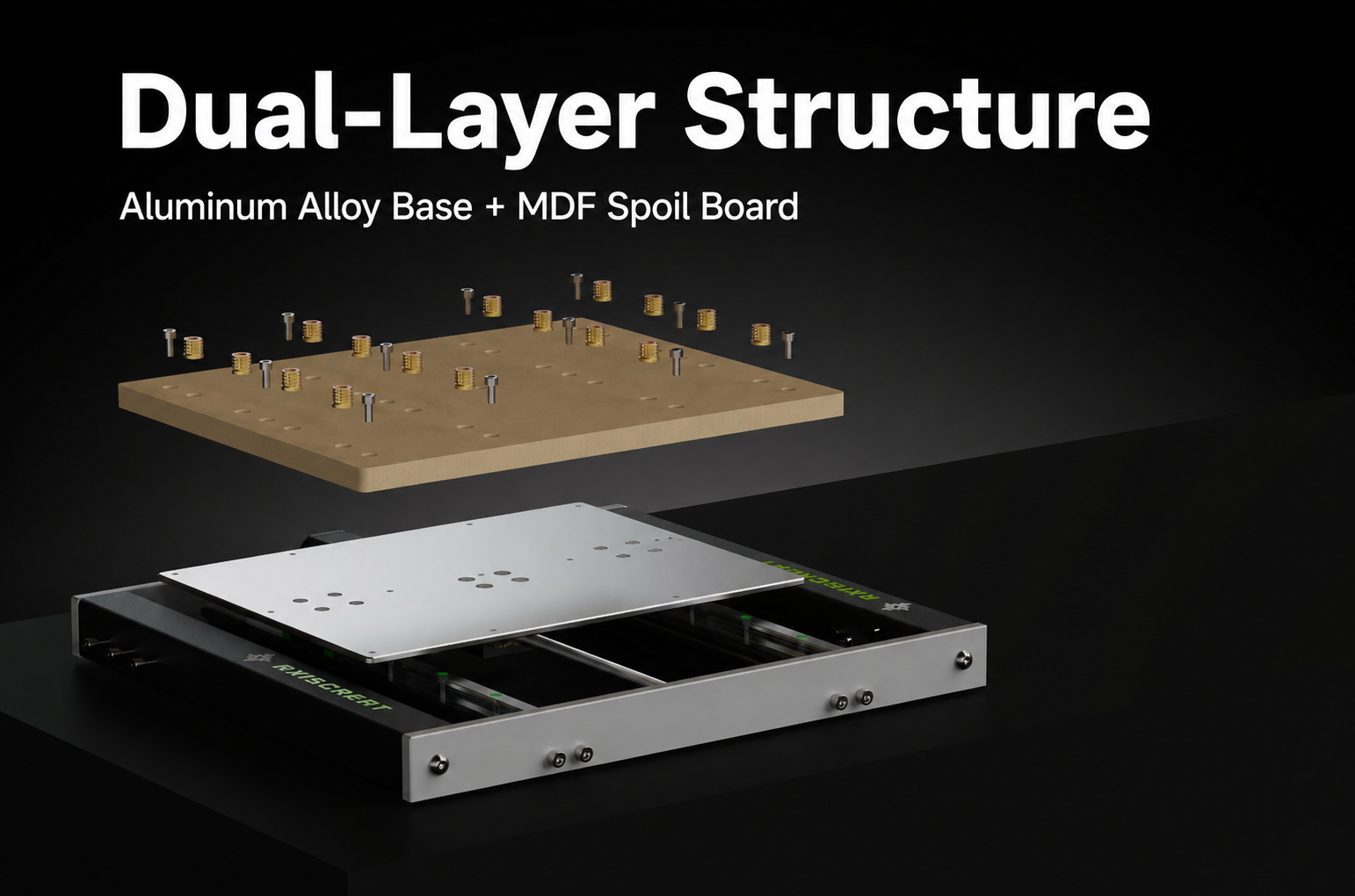

Working Area and Structure: With a working area of 11.8 x 11.8 x 3.74 inches (30 x 30 x 9.5 cm), it supports cutting, engraving, and drilling on wood, MDF, acrylic, aluminum, leather, and metal. Weighing 20.5 kg, its solid structure minimizes vibration, and the X/Y axes feature clearance-eliminating nuts for stable adjustments

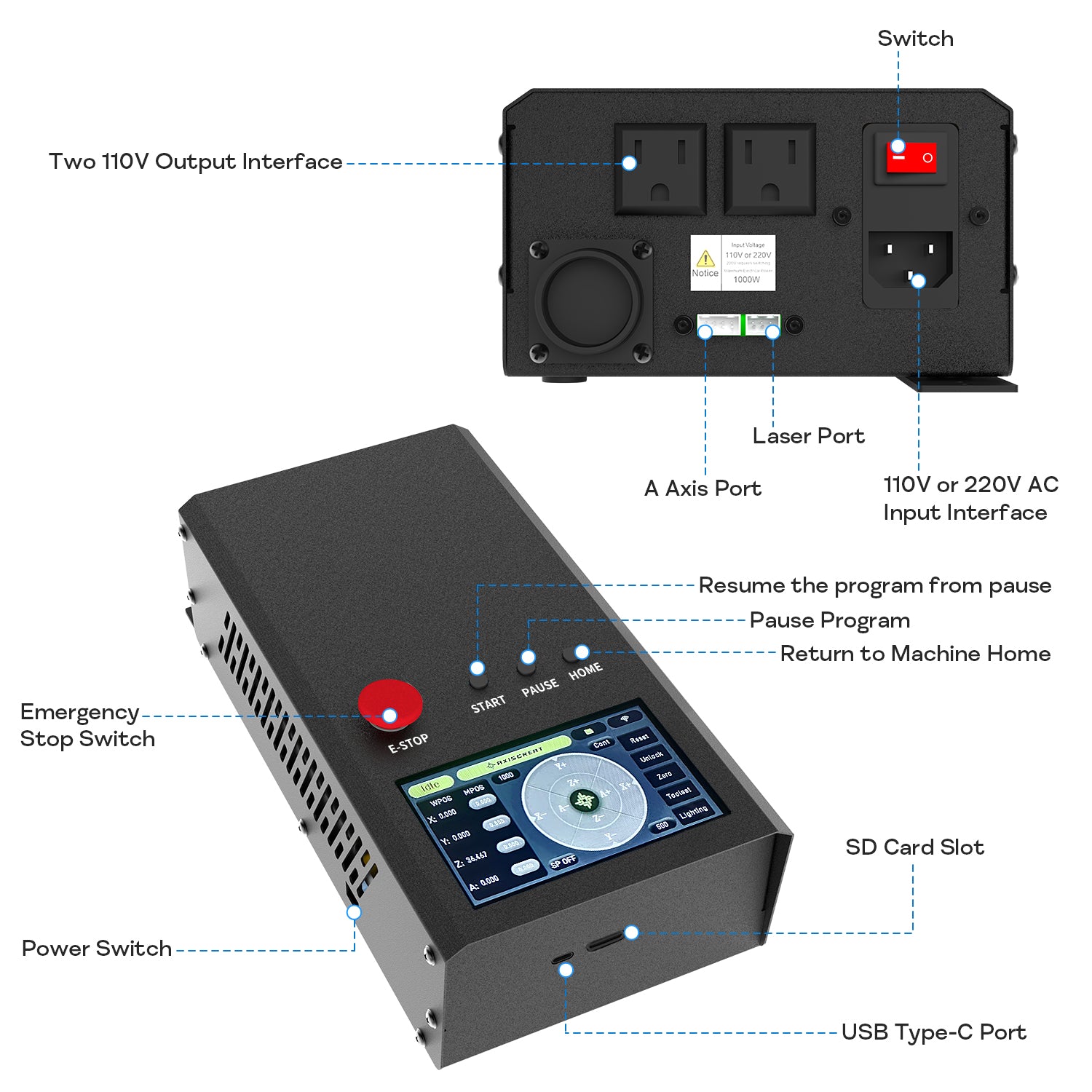

Control and Expansion Functions & Diversified Control Methods: Based on open-source Grbl v1.1, it supports ER11 collet (1–6 mm), NEMA 23 motors, MPG, and laser output. Comes with an offline controller and power box featuring two 110V sockets, controllable via the offline controller. Operable via offline controller, PC application, or manually. The 2.5-inch display ensures user-friendly operation
